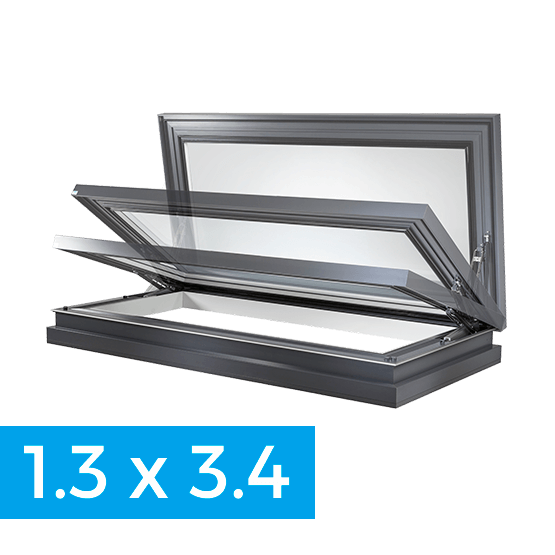

Electric Access Hatch XXL Skydoor
1.3 x 3.4 meter (424 kg)
Do you need an even larger opening? The Glazing Vision Skydoor XL (1.3 x 3.4m) is a sleek, low-profile hinged opening skylight that embodies our minimise framework, maximise daylight principle.
Key features
- Hinged access rooflight
- Opens smoothly up to 87 degrees in 43 seconds
- Suitable for regular access
- Excellent thermal performance
- Integrated proximity detectors
Electric Access Hatch XXL
€12,950.00 (excl. VAT)
Skydoor XXL 1.3 x 3.4 m
1300mm x 3400mm: overall weathered kerbs
900mm x 3000mm: inner dimension
424 kg
U value 1.2 W/M2.K
More about the Skydoor XXL access hatch
- High performance thermally efficient double glazing, the inner pane of glass is upgraded with a specialist laminated interlayer making it much more difficult for potential intruders to gain entry via the rooflight.
- All control electronics, mechanisms and power supply are completely hidden within the framework. Clean lines and clear views in and out.
- Anti-slip tread plate design incorporated into threshold monitored by safety sensors to stop the rooflight should something be in the way.
- Excellent thermal performance: U-value of 1,2 W/m²K.
Glasspecification: 32mm
- Outer: 6mm HST Toughened
- Spacer: 20mm Argon filled cavity with warm edge spacer bar
- Inner: 8mm HST Toughened soft coat low E (1.1)
Important information
- Upstand – Minimum 200 mm wide/150 mm high (by others)
- Recommended pitch – Minimum 3 degrees / maximum 10 degrees
- The units are hinged on the longest length.
- Hinge should always be at the top of the fall
- Colour – RAL7015 Slate Grey outer/ RAL9010 Pure White inner
Dimensions
A Skydoor XXL access hatch of 1.3 x 3.4 meter has the following dimensions
- 1300mm x 3400mm: overall weathered kerbs
- 900mm x 3000mm: inner dimension
- 1348mm x 3448mm: frame dimension
Quick and easy to install
All rooflights are designed to be easily installed by tradesmen or DIY enthusiasts.
